RENTAL
PDA mätnings hejare

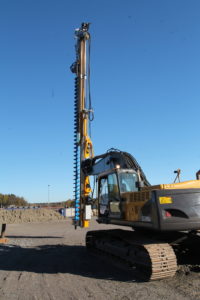

PDA maskin Volvo EC290
INTEROC AN120
Availabillity
After agreement, ask for a quotation
Facts
- Totally radio remote controlled
- Motor 119 kW EU stage IIIA
- Stroke 4,3 meter
- Eurodrill RH1200 or HD4010 (SPD quick coupling)
- Clamping table 410 mm diameter
- Hydraulic oil – mineral VG46
- Weight approx. 13 ton
- Rented per month
Contact us for more information or an offer
2 Rental rigs, DT145-SK350 Kobelco
| Mast | DT145 |
| Detail | Specification |
| Purpose | DTH, CFA, pre drill, foundation drill |
| Mast weight without tool | 6.500 kg |
| Total mast length | 10.800 mm – 18.000 mm |
| Recommended excavators | 32 – 48 ton |
| Cradle stroke | 13.000 mm |
| Lateral tilt | +/- 15 degrees (cylinders) |
| Crowd force | 140 kN |
| Feeding type | Cylinder,2*12 mm rope, (cable) |
| Mast displacement | 1000 mm |
| Excavator coupling/connection | Boom connection, pinned |
| Control system, remote system | SPD CAN bus |
| Micro controller | Danfoss Plus1 |
| Software | SPD |
| Voltage | 24 V |
| Transmitter | Wireless transmitter/receiver HBC |
| Option transmit | Cable control, cable included |
| Display | Colour display |
| GSM, access remotely | Yes |
| Digital documentation | Yes |
| X & Y | Displayed on the remote |
| Feed pressure | Displayed on the remote |
| Rotary pressure | Displayed on the remote |
| Percussion pressure | Displayed on the remote |
| Air pressure | Displayed on the remote |
| Depth measure display | Option |
| Feed speed display | Option |
| Rotary RPM display | Option |
| Jet grouting set up | Option |
| Hydraulic manifolds | Modular Danfoss PVG32, 128 |
| Max tank back pressure | <5 bar |
| Max drain line back pressure | 0,5-2 bar |
| Clamping table diameter | Ø450 mm |
| Break out cylinder force | 100 kNm |
| Recommended drill heads | RH16X/RH24X/RH32X |
| Recommended piling hammer | SPD1000/SPD2000 |
| Service winch | 15 kN |
| Cat head slewing | 180° |
| Detail | Specification |
| Excavator | Kobelco SK350NLC-10 |
| Weight (kg) | 36.300-39.300 |
| Width (mm) | 2.990 |
| Engine power (kW) | 213 |
| Emission standard | 5 (V) |
| Boom type | 2 piece boom |
| Boom length (meter) | 6.50 |
| Dipper arm (meter) | N/A |
| Counter weight (kg) | 8.590 |
| Pump max capacity (lit/min) | 2 x 294 |
