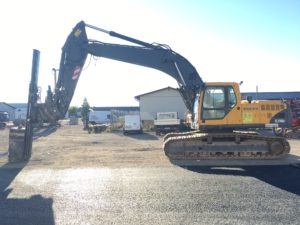

| Mast |
DT145 |
| Detail |
Specification |
| Purpose |
DTH, CFA, pre drill, foundation drill |
| Mast weight without tool |
6.500 kg |
| Total mast length |
10.800 mm – 18.000 mm |
| Recommended excavators |
32 – 48 ton |
| Cradle stroke |
13.000 mm |
| Lateral tilt |
+/- 15 degrees (cylinders) |
| Crowd force |
140 kN |
| Feeding type |
Cylinder,2*12 mm rope, (cable) |
| Mast displacement |
1000 mm |
| Excavator coupling/connection |
Boom connection, pinned |
| Control system, remote system |
SPD CAN bus |
| Micro controller |
Danfoss Plus1 |
| Software |
SPD |
| Voltage |
24 V |
| Transmitter |
Wireless transmitter/receiver HBC |
| Option transmit |
Cable control, cable included |
| Display |
Colour display |
| GSM, access remotely |
Yes |
| Digital documentation |
Yes |
| X & Y |
Displayed on the remote |
| Feed pressure |
Displayed on the remote |
| Rotary pressure |
Displayed on the remote |
| Percussion pressure |
Displayed on the remote |
| Air pressure |
Displayed on the remote |
| Depth measure display |
Option |
| Feed speed display |
Option |
| Rotary RPM display |
Option |
| Jet grouting set up |
Option |
| Hydraulic manifolds |
Modular Danfoss PVG32, 128 |
| Max tank back pressure |
<5 bar |
| Max drain line back pressure |
0,5-2 bar |
| Clamping table diameter |
Ø450 mm |
| Break out cylinder force |
100 kNm |
| Recommended drill heads |
RH16X/RH24X/RH32X |
| Recommended piling hammer |
SPD1000/SPD2000 |
| Service winch |
15 kN |
| Cat head slewing |
180° |
